Stage AM 30

Hand pallet truck 3.0t

  • 120 mm
  • 3000 kg
  • Robust construction and innovative pump hydraulic system
  • Time-saving fast lift for up to 120 kg
  • Ergonomic tiller for right- and left-handed operators alike
  • Flexible steering radius of 105° for best manoeuvrability
  • Maintenance-free due to permanently lubricated connections

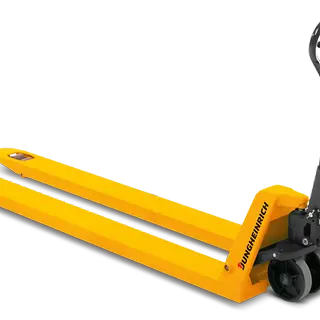

AM 30

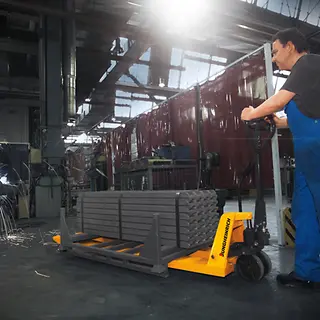

The robust and particularly manoeuvrable hand pallet trucks AM 30 are ideal for the transport of heavy goods over shorter distances. Even with heavy cargo they remain surprisingly quiet and agile. This is made possible through their compact format and their particularly wide steering radius. Chromed bushes on the wheels and joints make sure that pushing and pulling of heavy goods is possible without much force. The tiller head, too, ensures ergonomic and therefore safe working with its design that is intuitive and easy to operate for left- as well as right-handed operators. Due to the hardened steel and the stable forks AM 30 move very heavy goods with ease. The especially enforced frame makes these hand trucks reliable companions in warehouses as well as on HGV. For the transport of goods with extreme centres of gravity a variety of fork lengths are available – individually adapted to your needs.

Features

Model Overview

Model Load capacity Lift height Travel speed Overall length
AM 30, 550x1220, V-BV, SH 3,000 kg 120 mm 0 km/h 1,603 mm
AM 30, 550x1600, V-BV, SH 3,000 kg 120 mm 0 km/h 1,983 mm
AM 30, 550x1800, V-BV, SH 3,000 kg 120 mm 0 km/h 2,183 mm
AM 30, 550x2100, V-BV, SH 3,000 kg 120 mm 0 km/h 2,483 mm
