Stage EFG 535k_540k_540_545k_545_550_S40_S50

Electric forklift truck 3.5 - 5.0t

  • 2480 - 7500 mm
  • 3500 - 5000 kg
  • PureEnergy concept provides optimised energy efficiency.
  • Best visibility thanks to compact mast.
  • Safe battery exchange without crane.

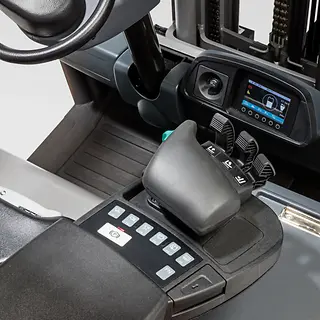

  • Flexibly adjustable operating concepts.
  • Ergonomic workplace for more productivity.

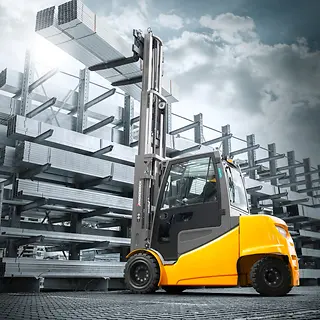

EFG 535-S50

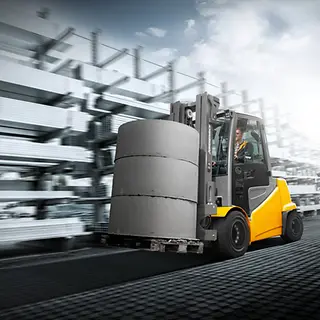

Our powerful and robust Series 5 electric four-wheel counterbalance forklift trucks are ideal for the toughest indoor and outdoor services. Thanks to smart mounting options, individual attachments can be fitted for transporting almost every kind of cargo. With our PureEnergy technology concept, these high-performance trucks get the work done with optimum energy and cost efficiency. Based on measurements according to VDI cycle, they consume up to 20% less energy than comparable competitive models at maximum throughput. The compact mast with extended field of vision and intelligent controls that adapt to each operator and application profile allow full performance with every journey. Various assistance systems and equipment options guarantee safe and efficient work – even under extreme conditions. The ergonomically perfected Series 5 EFG trucks are high-performance powerhouses for demanding operations.

Li-Ion

Picture Li-Ion 5 years guarantee 2021
No worries – no compromise

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Features

Model Overview

Model Load capacity Lift height Travel speed Overall length Battery voltage
EFG 535k 3,500 kg 7,500 mm 17 km/h 3,805 mm 80 V
EFG 540k 4,000 kg 7,500 mm 16 km/h 3,818 mm 80 V
EFG 540 4,000 kg 7,500 mm 16 km/h 3,962 mm 80 V
EFG S40 4,000 kg 7,500 mm 16 km/h 4,102 mm 80 V
EFG 545k 4,500 kg 7,500 mm 16 km/h 3,818 mm 80 V
EFG 545 4,500 kg 7,500 mm 16 km/h 3,962 mm 80 V
EFG 550 4,990 kg 7,500 mm 16 km/h 3,962 mm 80 V
EFG S50 5,000 kg 7,500 mm 16 km/h 4,102 mm 80 V
